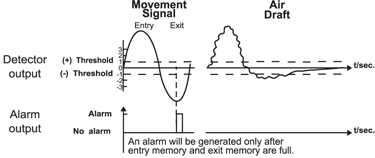

Dual Edge Processing (Entry and Exit Analysis)



Dual edge processing separates the entry and exit signals so each signal must reach the required level.  If the entry and exit signals do not reach required energy levels, an alarm is not generated thus dramatically increasing false alarm immunity.  Single edge processing (found in most PIRs) adds the entry and exit signals until the required energy levels are reached before an alarm is generated.

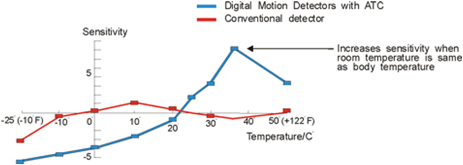

Automatic Temperature Compensation (ATC)



ATC automatically adjusts the motion detector’s sensitivity according to the difference between the room temperature and body temperature.  This helps maintain the same operation in its operational temperature range without any loss of coverage or decrease in false alarm rejection.

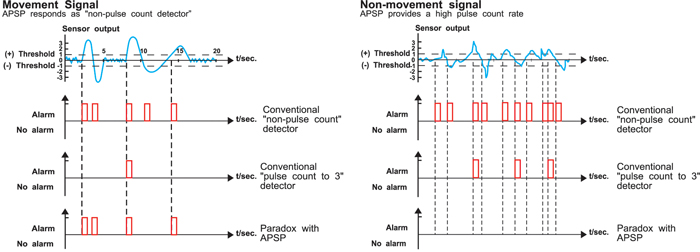

Auto Pulse Signal Processing (Patented)



Auto Pulse Signal Processing (APSP) measures energy from each detected signal and stores it in memory.  To generate an alarm, the memory must reach a required minimum level.  Thus, in the presence of high-level signals (very low risk of false alarms) the detector immediately generates an alarm, functioning as a “non-pulse count” detector, while low level signals (presenting a high risk of false alarms) will cause the detector to automatically switch to a very high pulse count mode - resulting in excellent protection against false alarms.  Pulse counting rate depends on signal energy levels and can go much higher for RFI signals.

Digital Shield Algorithm



Real Time DSP (Digital Signal Processing):
The DSP portion of the software digitally amplifies and filters the sensor signal in real time.  Unlike analog filtering, digital filters are accurate, unaffected by temperature levels, have no phase distortion and do not add cost or hardware components.  The result is a clean and accurate digital signal with maximum S/N ratio.

Movement Analysis:
Movement generates a unique sequence of signals.  For each signal, Shield measures and calculates the signal’s parameters (amplitude, duration, peak level, polarity, rise time and shape) in real time and then stores them in memory.  Each signal is compared with a reference bank of movement and non-movement signals.  If the signal does not meet movement criteria, it is immediately rejected.

RFI/EMI Protection:
The high dynamic range of the digital samples and high sampling rate allow high level RF signals to be recorded without clipping or any other distortion.  Shield recognizes RFI/EMI conditions and effectively distinguishes interference signals from movement signals without compromising the detection of movement.

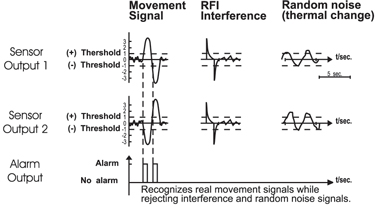

Dual Opposed Detection (DOD)



Compares the entry and exit signals’ polarity.  Only movement signals will generate opposed polarity signals, which will be processed by the software. Any interference signals will generate same polarity signals, which will be rejected by the software providing unmatched RFI and EMI immunity.

Conventional "Digital" Motion Detection:



Conventional "digital" motion detectors have an analog stage that is used to amplify the sensor's signal.  The analog circuitry causes most of the signal to be lost due to the saturation of the amplifier.  Therefore, there is no real benefit in adding a processor to an analog motion detector since most of the signal is lost in the amplifier stage and there is no data to process over a conventional analog decision-making circuit.

100% Digital Motion Detection (Patented)



100% Digital Detection:



Completely software-driven, true 100% digital motion detection completely converts, amplifies and processes the sensor’s low-level signal in the digital domain without any analog circuitry.  The sensor’s entire signal is processed without any saturation or noise, which provides increased accuracy, reliability and superior false alarm immunity.

NV780 Digital Outdoor Dual Side-View Detector with 4x Dual Sensors



Features



Advanced Digital Technology:

· Two double passive infrared motion detector with eight narrow detection beams, managed by Full Authority Digital Electronics Control (FADEC)

· High-resolution and full dynamic range digital signal conversion

· High-speed, advanced algorithm digital signal processing

· Digital EMI / RFI interference rejection

· True Pet Immunity, up to 40kg (90lb)

Advanced Optical Technology:

· 4x dual element sensors arrangement

· High efficiency long focal point (1.77") lens, providing long-range narrow beams

· 2 pairs of narrow beams per side provide 2x signals per protected area crossing for increased "catch" and false alarm rejection

· Combination optics of mirror reflector and 2nd generation Fresnel "LoDiff" Lens

· Increased white light rejection

Easy Installation and Setup:

· Single or Dual Zone operation modes: two sides can report to a single zone or to two separate zones

· Optical and digital range adjustments

· Bright LED and buzzer indicator for clear adjustment feedback

· No need for PCB removal

· Wall-mount, with built-in level tool

· In-field firmware upgradable via serial port

PMD85 Series Outdoor Digital Dual-Optic High-Performance PIR
(40kg/90lb True Pet Immunity)



Features



· Impact and temperature resistant casing

· Operates at -35°C to +50°C (-31°F to +122°F)

· Casing lined with an injected rubber gasket

· UV protected lens

· Dual Optical Filtering System

· Multi-level sensitivity adjustment

· Patented Digital Motion Detection

· Dual optics (2 dual opposed element sensors)

· Digital Dual Opposed Detection

· Alive software (alarm LED continues to display when PIR is in energy save mode without compromising battery life)

· 3-minute energy save mode after two detections within a five-minute period

· Can be used with the Heavy Duty Outdoor Swivel Bracket (SB85)

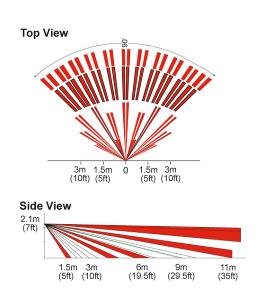

Available Lens Patterns:

· Patented Animal Immunity (up to 40kg/90lbs)

· 11m (35ft) X 11m (35ft); 90° viewing angle

· Allows large-breed dogs and multiple pets to roam freely below the 1.1m (3.6ft) detection level

· 11m (35ft) X 11m (35ft); 85° viewing angle

· Protects corridors or vertical surfaces such as walls or balcony doors

· 13m (43ft) x 2 beams; 5.64° viewing angle

PMD75 Series Indoor Digital Dual-Optic High-Performance PIR
(40kg/90lb True Pet Immunity)



Features



· Patented Digital Motion Detection

· Dual optics (2 dual opposed element sensors)

· Immune to animals weighing up to 40kg (90lb)

· Digital Dual Opposed Detection

· Digital Shield algorithm with adjustable sensitivity

· Single or Dual Edge Processing

· 11m x 11m (35ft x 35ft) with 90° viewing angle

· Wireless range in a typical residential environment: - 35m (115ft) with MG6160, MG6130, and MG6250; - 70m (230ft) with MG5000, MG5050 and RTX3

· Patented Auto Pulse Signal Processing

· Automatic Temperature Compensation

· Alive software (alarm LED continues to display when PIR is in energy save mode without compromising battery life)

· 3-minute energy save mode after two detections within a five-minute period

PMD2P Analog Single-Optic PIR



Features



· Dual element sensor

· Immune to animals weighing up to 18kg (40lb)

· 11m x 11m (35ft x 35ft) and up to 15m (50ft) for center beams with 88.5° viewing angle

· Wireless range in a typical residential environment: - 35m (115ft) with MG6160, MG6130, and MG6250; - 70m (230ft) with MG5000, MG5050 and RTX3

· When a higher level of immunity is required, such as when animals are constantly in the detection area, consider using PMD75

· Patented Auto Pulse Signal Processing

· Automatic Temperature Compensation

· Alive software (alarm LED continues to display when PIR is in energy save mode without compromising battery life)

· 3-minute energy save mode after two detections within a five-minute period

WS588P Wireless Smoke Detector



Features



· One high-sensitivity photoelectric smoke sensor

· Compact, low-profile design

· Built-in siren

· Available in 433MHz or 868MHz

· Protection against the ingress of foreign bodies / Insect Guard

· CE and EN 14604 Certified

GS250 Gpower Wireless Multi-axis Asset Motion Detector



Features



· Three-axis (X, Y, and Z axis) accelerometer detection for protection of moveable assets, such as artworks, Screens, etc

· Adjustable sensitivity for any installation (additional grace period of up to four seconds can be added): -Short movement (High-security) = 1 to 3-seconds -Long movement (Standard-security) = 3 to 5-seconds

· Long battery life (2 years with two detections per week)

· Low battery and RF supervision

· Dual-tamper detection for removal or opening of the device
